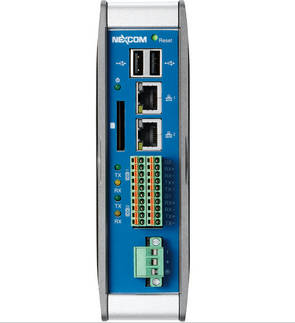

NISE 60采用ARM® based Cortex™ A8 TI 3352M 720MHz CPU平臺，并沿襲了NISE家族低功耗、前置I/O、無風扇和導軌式安裝，專為工業自動化應用而設計。
NISE 60采用低功耗ARM based CPU，支持-20℃ 到70℃寬溫操作。導軌式安裝支架可很容易與NISE 60安裝。前置的I/O設計，使I/O布線簡單，便于NISE 60內置到機柜內。其內置的5個數字輸入和5個數字輸出可用于板載控制的I/O。
CPU ARM® Cortex™ A8 TI 3352M 720MHz CPU
主內存 1 x 512MB/303MHz DDR3 RAM
顯示選項 1 x VGA Port
前置I/O接口 1 x RJ45 for GbE LAN 2 x USB2.0 1 x SD socket Phoenix connectors for 2 x RS232/422/485 3 pins Phoenix connector for +12/+24VDC Power input
底部I/O接口 1 x VGA Port Phoenix connector for 5 x digital input and 5x digital output
存儲設備 1 x SD socket (support up to 2GB)
電源需求 AT Power mode Support +12/ +24VDC Input
尺寸 51.8mm (W) x 140mm (D) x 167mm (H)
構造 Aluminum Chassis with fanless design
運行環境 Operating temperature:
- Ambient with air flow: -20℃ to 70℃
- (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage temperature: -40℃ to 85℃ Relative humidity: 95% at 40℃ Shock protection: 20G, half sine, 11ms, IEC60068-2-27 Vibration protection
- Random: 0.5Grms @ 5~500 Hz according to IEC60068-2-6
- Sinusoidal: 0.5Grms @ 5~500 Hz according to IEC60068-2-6
