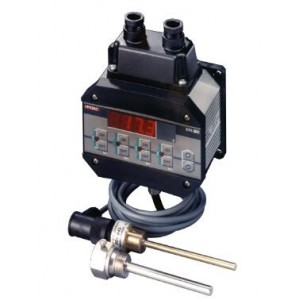

賀德克溫度傳感器ETS 1700電子溫度開關主要用于與專為油箱安裝而開發的溫度探頭TFP 100配合使用。
4位數字顯示屏可顯示實際溫度、一個開關點或***高溫度值。
***高溫度表示設備接通或上次重置以來出現的***高溫度。
這四個開關輸出可用于控制液壓系統中的加熱和冷卻過程，例如。通過按鍵板，可以非常簡單地調整四個獨立的開關和開關回位點。
為了集成到監控系統（例如，與PLC配合使用），還提供模擬輸出（4 .. 20 mA或0 .. 10 V）。
Model Code Description
|
ETS 1701-100-000 |
Environmental Conditions
|
CE Mark EN 61000-6-1/2/3/4 |
Input Mechanical Connection Type
|
Male connector 5 pole Binder series 423/723 for separate temperature probe |
Switch Outputs Type
|
4 relays with change-over contacts in 2 groups (common supply of each group connected) |
Output Signal
|
4-20 mA or 0-10V, selectable |
Electrical Connection
|
Plug-in terminal block, 14 pole |
Power Supply
|
22 to 32 V DC |
Residual Ripple of Supply Voltage
|
≤ 10 % |
Display
|
4-digit, LED, 7-segment, red, height of digits 13 mm |
Accuracy at Room Temperature
|
≤ ± 1.0ºC (+error separate temperature probe) |
Number of Contacts
|
4 |
Pin Connection 1
|
+UB |
Pin Connection 2
|
0V |
Pin Connection 3
|
Analog Output Signal + |
Pin Connection 4
|
Analog output signal - (0V) |
Pin Connection 5
|
Relay 1 N/C |
Pin Connection 6
|
Relay 1 N/O |
Pin Connection 7
|
Center Relay 1 and 2 |
Pin Connection 8
|
Relay 2 N/C |
Pin Connection 9
|
Relay 2 N/O |
Pin Connection 10
|
Relay 3 N/C |
Pin Connection 11
|
Relay 3 N/O |
Pin Connection 12
|
Center relay 3 and 3 |
Pin Connection 13
|
Relay 4 N/C |
Pin Connection 14
|
Relay 4 N/O |
Output Repeatability (Full Scale)
|
≤ ± 0.25 % |
Probe Connection - Pin 1
|
+UB |
Probe Connection - Pin 2
|
Signal + |
Probe Connection - Pin 3
|
Not used |
Probe Connection - Pin 4
|
Signal - |
Probe Connection - Pin 5
|
0V |
Measuring Element
|
PT 100 (TFP 100) |
Alternate Current (AC)/Direct Current (DC) Switching Voltage
|
0.01 to 250 V12 to 32 V |
Switching Capacity
|
500 V·A |
Switching Cycles at Minimum Load In Million
|
≤ 20 |
Switching Cycles at Maximum Load
|
≤ 400000 |
Temperature Drift at Environment (Full Scale (FS)/ °C)
|
≤ ± 0.03 % |
Maximum Switching Current Per Switch Output
|
0.01 to 2 A |
Operating Temperature [Min]
|
-25 ºC |
Operating Temperature [Max]
|
60 ºC |
Sensing Temperature [Min]
|
0 ºC |
Sensing Temperature [Max]
|
100 ºC |
Storage Temperature Range
|
-40 to 80 ºC |
Protection class to IEC 60529
|
IP 65 |
Switching Power Rating
|
64 W |
Vibration Resistance According to DIN EN 60068-2-6 at 0 to 500 Hz
|
≤ 5 g |
Shock Resistance According to DIN EN 60068-2-29 (11 ms)
|
≤ 10 g |
Current Consumption
|
≤ 200 mA |
Weight
|
1.76 lb |
Setting Options
|
The microprocessor integrated into the ETS 1700 enables many useful extra functions in addition to the switching functions, when compared with a normal mechanical temperature switch. It is possible, for example, to activate switching delay times or to change the relay switching direction. All settings are made via the key pad. |
Additional Setting Options
|
- Switching direction of the relays 1 to 4 (N/C or N/O)
- Switch-on delay relays 1 to 4 in the range 0.00 .. 90 seconds
- Switch-off delay relays 1 to 4 in the range 0.00 to 90 seconds
- Switch-back mode (either switch-back point or switch-back hysteresis)
- Display of the actual pressure, a switching point or of the peak value
- Display filter (slow/medium/fast)
- Display range scale individually adaptable (Fahrenheit, Celsius, user-selectable)
- Measurement unit (Celsius, Fahrenheit) is displayed
- Analog output (4 to 20 mA or 0 to 10 V)
- Programming disable
|
Setting Ranges of the Switching Points
|
- Switching point relay 1 to 4: 1.5 % to 100 % FS
- Switch-back relay 1 to 4: 1 % to 99 % FS or alternatively switch-back hysteresis 1 to 4: 1 % to 99 % FS
|
|
Reverse polarity protection of the supply voltage, excess voltage, override and short circuit protection are provided.
