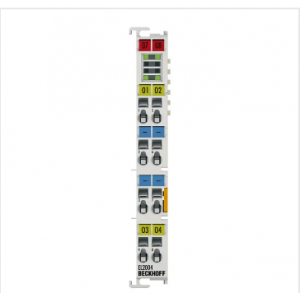

倍福EL2004 | EtherCAT Terminal, 4-channel digital ou

點擊圖片查看原圖

店鋪基本資料信息

產品詳細說明

本公司專業銷售德國Beckhoff倍福PLC、PC、模塊IO等產品，價格美麗，庫存充足，歡迎來電咨詢~

Technical data EL2004

Connection technology 2-wire

Number of outputs 4

Nominal voltage 24 V DC (-15 %/+20 %)

Load type ohmic, inductive, lamp load

Distributed clocks –

Max. output current 0.5 A (short-circuit proof) per channel

Short-circuit current typ. < 2 A

Reverse voltage protection yes

Breaking energy < 150 mJ/channel

Switching times typ. TON: 60 µs, typ. TOFF: 300 µs

Current consumption E-bus typ. 100 mA

Electrical isolation 500 V (E-bus/field potential)

Current consumption power contacts typ. 15 mA + load

Bit width in the process image 4 outputs

Configuration no address or configuration setting

Weight approx. 55 g

Operating/storage temperature -25…+60 °C/-40…+85 °C

Relative humidity 95 %, no condensation

Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27

EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4

Protect. rating/installation pos. IP20/variable

Pluggable wiring for all ESxxxx terminals

Approvals/markings CE, UL, ATEX, IECEx, DNV GL

Ex marking ATEX:
II 3 G Ex nA IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc

Technical data

Housing data

To top

Housing data EL-12-8pin ES-12-8pin

Design form compact terminal housing with signal LEDs terminal housing with pluggable wiring level

Material polycarbonate

Dimensions (W x H x D) 12 mm x 100 mm x 68 mm

Installation on 35 mm DIN rail, conforming to EN 60715 with lock

Side by side mounting by means of double slot and key connection

Marking labeling of the BZxxx series

Wiring solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver

Connection cross-section s: 0.08…2.5 mm²,
st: 0.08…2.5 mm²,
f: 0.14…1.5 mm² s: 0.08…1.5 mm²,
st: 0.08…1.5 mm²,
f: 0.14…1.5 mm²

Connection cross-section AWG s: AWG 28…14,
st: AWG 28…14,
f: AWG 26…16 s: AWG 28…16,
st: AWG 28…16,
f: AWG 26…16

Stripping length 8…9 mm 9…10 mm

Current load power contacts Imax: 10 A

Technical data	EL2004
Connection technology	2-wire
Number of outputs	4
Nominal voltage	24 V DC (-15 %/+20 %)
Load type	ohmic, inductive, lamp load
Distributed clocks	–
Max. output current	0.5 A (short-circuit proof) per channel
Short-circuit current	typ. < 2 A
Reverse voltage protection	yes
Breaking energy	< 150 mJ/channel
Switching times	typ. TON: 60 µs, typ. TOFF: 300 µs
Current consumption E-bus	typ. 100 mA
Electrical isolation	500 V (E-bus/field potential)
Current consumption power contacts	typ. 15 mA + load
Bit width in the process image	4 outputs
Configuration	no address or configuration setting
Weight	approx. 55 g
Operating/storage temperature	-25…+60 °C/-40…+85 °C
Relative humidity	95 %, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Pluggable wiring	for all ESxxxx terminals
Approvals/markings	CE, UL, ATEX, IECEx, DNV GL
Ex marking	ATEX: II 3 G Ex nA IIC T4 Gc IECEx: Ex ec IIC T4 Gc

Housing data	EL-12-8pin	ES-12-8pin
Design form	compact terminal housing with signal LEDs	terminal housing with pluggable wiring level
Material	polycarbonate
Dimensions (W x H x D)	12 mm x 100 mm x 68 mm
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxx series
Wiring	solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver
Connection cross-section	s: 0.08…2.5 mm², st: 0.08…2.5 mm², f*: 0.14…1.5 mm²	s: 0.08…1.5 mm², st: 0.08…1.5 mm², f*: 0.14…1.5 mm²
Connection cross-section AWG	s: AWG 28…14, st: AWG 28…14, f*: AWG 26…16	s: AWG 28…16, st: AWG 28…16, f*: AWG 26…16
Stripping length	8…9 mm	9…10 mm
Current load power contacts	Imax: 10 A
