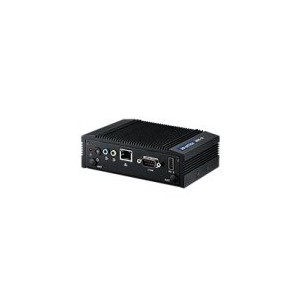

研華超緊湊型無風扇嵌入式工控機ARK-10

  Intel Atom J1900 四核SoC，2 x GbE和2 x COM無風扇嵌入式工控機


• ntel® ATOM™J1900四核2.0GHz SoC
• 內存2G DDR3L，硬盤500G 2.5" 24 x 7 SATA HDD
• 2 x GbE用于多種網絡傳輸
• 2 x RS-232/422/485
• 1 x 全尺寸MiniPCIe擴展槽（WLAN或WWAN模塊）
• 1 x 半尺寸MiniPCIe擴展槽（mSATA）
• 可選VESA、DIN Rail、壁掛等安裝方式
• 鎖固型DC jack電源輸入
• 支持SUSIAccess及其他內嵌APIs

Intel Atom J1900 四核SoC，2 x GbE和2 x COM無風扇嵌入式工控機

規格


Part Number

• 相關訊息

• ARK-10-U0A1E





Processor

• CPU
• Core Number
• Frequency
• L2 Cache
• BIOS

• Intel Celeron Processor J1900 Quad Core SoC

• 4

• 2.0 GHz (Up to 2.41 GHz w/ burst frequency enabled)

• 2 MB

• AMI EFI 64 Mbit (Default BIOS is supported for 64-bit OS installation, BIOS for 32-bit OS is supported by project)



Memory

• Technology
• Socket

• DDR3 1333MHz

• 1 x 204-pin SO-DIMM, 2 GB Memory Built In



Graphics

• Chipset
• Graphic Engine
• VGA

• Intel® Atom SoC integrated

• DirectX* 11.1, OGL 3.0, OCL 1.1, OGL ES 2.0 support Encode: H264, MPEG2/4, VC1, WMV9 Decode: H264, MPEG2

• 1 x VGA, support up to 1920 x 1200 at 60Hz



Audio

• Main System

• ALC-888S, High Definition Audio. Line-out & Line-in



Ethernet

• LAN1
• LAN2

• 10/100/1000 Mbps Intel i210 GbE, support Wake On Lan

• 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN



I/O Interface

• Serial Port
• USB Interface

• 2 x RS-232/422/485 (BIOS selectable)

• 2 x USB 2.0 & 1 x USB3.0



Other

• Watchdog Timer

• 255 levels timer interval, setup by software



Expansion

• Mini PCIe

• 1 x Full-size Mini PCIe, support WLAN or WWAN module; 1 x Half-size Mini PCIe, support mSATA module



Storage

• 2.5" Drive Bay
• mSATA

• 1 x 500GB 2.5" 24x7 SATA HDD Built In

• Leverage MiniPCIe #2 slot (Suggest to assembly by CTOS or T-Part due to complex installation)



Software Support

• Microsoft Windows
• Linux

• WES7, Windows 7, WE8S, Windows 8 (32-bit support by project)

• Support (by Project)



Power

• Input Voltage
• Power Adaptor

• 12 VDC

• AC to DC, DC12 V/3 A, 36 W with threaded design



Mechanical

• Construction
• Mounting
• Dimensions

• Aluminum housing

• VESA/DIN Rail/Wall Mounting Kits (Optional)

• 133.8 x 43.1 x 94.2 mm (5.27" x 1.7" x 3.71")



Environment

• Operating Temperature
• Storage Temperature
• Relative Humidity
• Vibration during Operation
• Shock During Operation

• 0 ~ 50° C with 0.7m/s air flow

• -40 ~ 85° C (-40 ~ 185° F)

• 95% @ 40° C (non-condensing)

• 0.5Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

• 10G, IEC 60068-2-27, half sine, 11 ms duration



Regulation

• EMC
• Safety

• CE/FCC Class A, CCC, BSMI

• UL, CCC, BSMI, CB
