CMP-A2F系列防爆電纜密封接頭(Exe、Exd)
CMP防爆格蘭代理商：上海頤品自動化科技有限公司
關鍵詞：CMP防爆格蘭，CMP防爆葛蘭，CMP防爆填料函，CMP防爆密封接頭
CMP非鎧防爆格蘭，CMP鎧裝防爆格蘭，CMP防爆變徑，CMP防爆呼吸閥堵頭

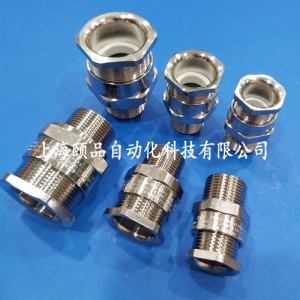

A2F Series of explosion-protected CMP cable gland
Cable Gland Material：Nickel-plated brass；Stainless Steel 316L
CMP - The Cable Gland ａnd Connector Specialists
CMP design & manufacture cable glands & cable connectors for industrial,
marine ａnd explosive atmospheres installations
A2F Globally Approved, Explosive Atmosphere Cable Gland
For all types of Unarmoured & Braid Armour Cables
• Displacement type flameproof seal
• Designed to prevent Coldflow
• No external cable clamping required
• Deluge protected
• -60?C to +130?C (standard), -20?C to 200?C (ThermEx option page 91)
• Globally marked, IECEx, ATEX & CSA
CMP非鎧防爆格蘭頭（A2F-黃銅鍍鎳）
CMP非鎧防爆格蘭頭（A2F-不銹鋼316L）
CMP防爆格蘭代理商【上海頤品自動化科技有限公司】
CMP選型資料：CMP-A2F系列防爆電纜密封接頭(Exe、Exd)
| CMP Order Reference |
OD Max. |
ID Max. |
Male Thread |
M制訂貨號 |
PVC護套 |
上海頤品 |
| A2F 20S/16 |
3.20 |
8.70 |
M20 |
20S16A2F1RA |
PVC04 |
EPIN |
| A2F 20S |
6.10 |
11.70 |
M20 |
20SA2F1RA |
PVC04 |
EPIN |
| A2F 20 |
6.50 |
14.00 |
M20 |
20A2F1RA |
PVC05 |
EPIN |
| A2F 25 |
11.10 |
20.00 |
M25 |
25 A2F2RA |
PVC09 |
EPIN |
| A2F 32 |
17.00 |
26.30 |
M32 |
32A2F3RA |
PVC10 |
EPIN |
| A2F 40 |
23.50 |
32.20 |
M40 |
40A2F4RA |
PVC13 |
EPIN |
| A2F 50S |
31.00 |
38.20 |
M50 |
50SA2F5RA |
PVC14 |
EPIN |
| A2F 50 |
35.60 |
44.10 |
M50 |
50A2F6RA |
PVC17 |
EPIN |
| A2F 63S |
41.50 |
50.00 |
M63 |
63SA2F7RA |
PVC20 |
EPIN |
| A2F 63 |
47.20 |
56.00 |
M63 |
63A2F8RA |
PVC22 |
EPIN |
| A2F 75S |
54.00 |
62.00 |
M75 |
75SA2F9RA |
PVC24 |
EPIN |
| A2F 75 |
61.10 |
68.00 |
M75 |
75 A2F10RA |
PVC26 |
EPIN |
| A2F 90 |
66.60 |
80.00 |
M90 |
90A2F11RA |
PVC31 |
EPIN |
| A2F 100 |
76.00 |
91.00 |
M100 |
100A2F12RA |
PVC32 |
EPIN |
| A2F 115 |
86.00 |
98.00 |
M115 |
115 A2F13RA |
PVC34 |
EPIN |
| A2F 130 |
97.00 |
115.00 |
M130 |
130A2F14RA |
PVC35 |
|
| CMP防爆格蘭代理商：上海頤品自動化科技有限公司 |
