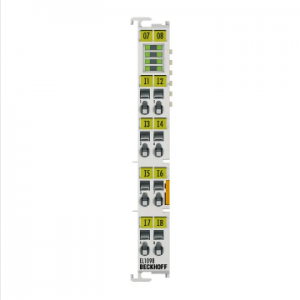

EL1098 | EtherCAT Terminal, 8-channel digital inpu

點擊圖片查看原圖
品牌: 倍福
品牌: 倍福
單價: 面議
所在地: 上海
有效期至: 長期有效
最后更新: 2023-07-20 11:33
瀏覽次數: 174
店鋪基本資料信息
  • 倍福PLC服務商
  • 聯系人佘小姐(女士) 銷售經理
  • 會員 [當前離線]
  • 郵件3095079020@qq.com
  • 電話15000955165
  • 地址上海市寶山區富聯一路98弄6號

產品詳細說明

Technical data EL1098
Connection technology 1-wire
Specification ground switching “0”: 18…30 V DC, “1”: 0…7 V DC, typ. 3 mA input current
Number of inputs 8
Nominal voltage 24 V DC (-15 %/+20 %)
“0” signal voltage 18…30 V
“1” signal voltage 0…7 V
Input current typ. 3 mA
Input filter typ. 10 µs
Distributed clocks
Current consumption power contacts typ. 25 mA
Current consumption E-bus typ. 90 mA
Electrical isolation 500 V (E-bus/field potential)
Configuration no address or configuration setting
Weight approx. 50 g
Operating/storage temperature 0…+55 °C/-25…+85 °C
Relative humidity 95 %, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos. IP20/see documentation
Pluggable wiring for all ESxxxx terminals
Approvals/markings CE, UL, ATEX, IECEx, DNV GL
Ex marking ATEX:
II 3 G Ex nA IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc
Housing data EL-12-8pin ES-12-8pin
Design form compact terminal housing with signal LEDs terminal housing with pluggable wiring level
Material polycarbonate
Dimensions (W x H x D) 12 mm x 100 mm x 68 mm
Installation on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of double slot and key connection
Marking labeling of the BZxxx series
Wiring solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver
Connection cross-section s*: 0.08…2.5 mm²,
st*: 0.08…2.5 mm²,
f*: 0.14…1.5 mm²
s*: 0.08…1.5 mm²,
st*: 0.08…1.5 mm²,
f*: 0.14…1.5 mm²
Connection cross-section AWG s*: AWG 28…14,
st*: AWG 28…14,
f*: AWG 26…16
s*: AWG 28…16,
st*: AWG 28…16,
f*: AWG 26…16
Stripping length 8…9 mm 9…10 mm
Current load power contacts Imax: 10 A
