K系列隔離式安全柵能夠為用戶提供全方位的解決方案，K系列安全柵保證現場設備和控制室之間可靠&經濟的信號傳送。無論用戶單一的選擇信號隔離模塊或者進行大規模的系統集成，K系列產品都能提供面向應用的解決方案。

倍加福安全柵K系列產品為用戶提供了廣泛的本安接口儀表解決方案，可以將很多簡單信號轉換成為高級功能模塊能夠識別的信號。

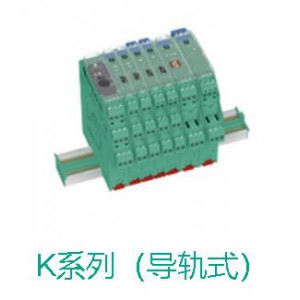

倍加福安全柵供電導軌插入標準的35mm DIN導軌內，只需簡單的固定安裝到位即可。供電導軌在給模塊供電的同時，還可以采集各個模塊的故障信息。使用導軌供電的方式極大的減少了布線和維護的費用，同時方便擴展。當需要增加新的模塊時，只需要將模塊插在供電導軌上。倍加福安全柵

供電導軌插入標準的35mm DIN導軌內，倍加福安全柵只需簡單的固定安裝到位即可。供電導軌在給模塊供電的同時，還可以采集各個模塊的故障信息。使用導軌供電的方式極大的減少了布線和維護的費用，同時方便擴展。當需要增加新的模塊時，倍加福安全柵只需要將模塊插在供電導軌上。

無需多余的費用即可擁有SIL等級

倍加福安全柵使用我們強大的軟件工具－Pactware，能夠方便的生成項目文檔，同時方便的組態和設置模塊。

倍加福安全柵技術參數節選 開關放大器

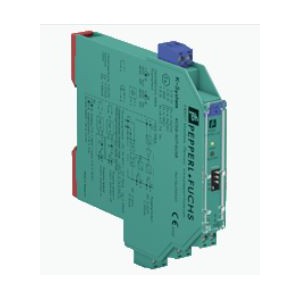

• KCD2-SR-Ex2

General specifications
Signal type		Digital Input
Functional safety related parameters
Safety Integrity Level (SIL)		SIL 2
Systematic capability (SC)		SC 3
Supply
Connection		Power Rail or terminals 9+, 10-
Rated voltage		19 ... 30 V DC
Ripple		≤ 10 %
Rated current		20 ... 15 mA
Power dissipation		≤ 700 mW including maximum power dissipation in the output
Input
Connection side		field side
Connection		terminals 1+, 2-
Rated values		acc. to EN 60947-5-6 (NAMUR)
Open circuit voltage/short-circuit current		approx. 10 V DC / approx. 8 mA
Switching point/switching hysteresis		1.2 ... 2.1 mA / approx. 0.2 mA
Line fault detection		breakage I ≤ 0.1 mA , short-circuit I ≥ 6.5 mA
Pulse/Pause ratio		min. 100 µs / min. 100 µs
Output
Connection side		control side
Connection		output I: terminals 5, 6 ; output II: terminals 7, 8
Rated voltage		30 V DC
Rated current		50 mA
Response time		≤ 200 µs
Signal level		1-signal: (external voltage) - 3 V max. for 50 mA 0-signal: blocked output (off-state current ≤ 10 µA)
Output I		signal ; Transistor
Output II		signal or fault message ; Transistor
Collective error message		Power Rail
Transfer characteristics
Switching frequency		≤ 5 kHz
Galvanic isolation
Input/Output		reinforced insulation acc. to EN 50178, rated insulation voltage 300 Veff
Input/power supply		reinforced insulation acc. to EN 50178, rated insulation voltage 300 Veff
Output/power supply		basic insulation according to EN 50178, rated insulation voltage 50 Veff
Output/Output		basic insulation according to EN 50178, rated insulation voltage 50 Veff
Indicators/settings
Display elements		LEDs
Control elements		DIP switch
Configuration		via DIP switches
Labeling		space for labeling at the front
Directive conformity
Electromagnetic compatibility
	Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Conformity
Electromagnetic compatibility		NE 21:2011
Degree of protection		IEC 60529:2001
Protection against electrical shock		IEC 61010-1:2010
Input		EN 60947-5-6:2000
Ambient conditions
Ambient temperature		-20 ... 60 °C (-4 ... 140 °F) extended ambient temperature range up to 70 °C (158 °F), refer to manual for necessary mounting conditions
Mechanical specifications
Degree of protection		IP20
Connection		screw terminals
Mass		approx. 100 g
Dimensions		12.5 x 119 x 114 mm (0.5 x 4.7 x 4.5 inch) (W x H x D) , housing type A2
Mounting		on 35 mm DIN mounting rail acc. to EN 60715:2001
Data for application in connection with hazardous areas
EU-type examination certificate		BASEEFA 13 ATEX 0080
	Marking	II (1)G [Ex ia Ga] IIC  II (1)D [Ex ia Da] IIIC  I (M1) [Ex ia Ma] I
	Input	Ex ia
	Voltage	10.5 V
	Current	17.1 mA
	Power	45 mW (linear characteristic)
Supply
	Maximum safe voltage	253 V AC (Attention! Um is no rated voltage.)
Output
	Maximum safe voltage	253 V AC (Attention! The rated voltage can be lower.)
Certificate		CML 19 ATEX 4410 X
	Marking	II 3G Ex ec IIC T4 Gc
Galvanic isolation
	Input/Output	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
	Input/power supply	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive conformity
	Directive 2014/34/EU	EN IEC 60079-0:2018 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012
International approvals
UL approval
	Control drawing	116-0374 (cULus)
IECEx approval
	IECEx certificate	IECEx BAS 13.0046 IECEx CML 19.0147X
	IECEx marking	[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc
General information
Supplementary information		Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Classifications
