產品ID:



1SBN010010R1010

ABB型號名稱:



CA 5-10

EAN:



3471522121004

目錄說明:

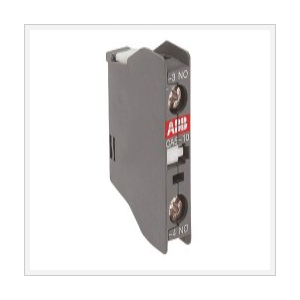

CA5-10 Auxiliary Contact Block

詳細描述:



CA5-10 Auxiliary Contact Block

訂貨信息

EAN:



3471522121004

*小起訂量:



10 piece

海關關稅號:



85389099

尺寸

產品凈寬:



9.5 mm

產品凈高:



46.8 mm

產品凈深:



32.5 mm

產品凈重:



0.143 kg

包裝信息

1級包裝單元:



10 piece

1級包裝寬度:



65 mm

1級包裝高度:



9.5 mm

1級包裝長度:



129.5 mm

1級包裝 總重:



1.43 kg

1級包裝 EAN:



3471522121004

2級包裝單元:



box 1000 piece

2級包裝寬度:



300 mm

2級包裝高度:



308 mm

2級包裝長度:



245 mm

2級包裝 總重:



143 kg

3級包裝單元:



12000 piece

環境條件

RoHS狀態:



Following EU Directive 2011/65/EU

其他信息

防護等級:



acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20

*高電氣切換頻率:



1200 cycles per hour

*高機械切換頻率:



3600 cycles per hour

機械壽命:



10 million



3 million

*小切換容量:



A9 ... A75 17 / 5 VLT4K



A95 ... A110 24 / 50 VLT4K

安裝到接觸器上:



A 9...A 75

安裝位置:



Front face

安裝類型:



Front mounting

輔助觸點NC數量:



0

輔助觸點NO數量:



1

訂單多元化:



10 piece

功率損耗:



at Rated Operating Conditions per Pole 0.1 W

產品系列:



Accessories for Block Contactors

產品:



Auxiliary Contact Block

額定分?jǐn)嗳萘糠�合IEC60497-5-1標準:



10 x Ie AC-15

額定頻率 (f):



Supply Circuit 50 60 Hz

額定絕緣電壓 (Ui):



acc. to UL/CSA 600 V



acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V

額定接通容量符合IEC 60947-5-1標準:



10 x Ie AC-15

額定工作電流 AC-15 (Ie):



(220 / 240 V) 4 A



(24 / 127 V) 6 A



(380 / 440 V) 3 A



(500 V) 2 A



(690 V) 2 A

額定工作電流 DC-13 (Ie):



(125 V) 0.55 / 69 A



(24 V) 6 / 144 A



(250 V) 0.3 / 75 A



(48 V) 2.8 / 134 A



(72 V) 1 / 72 A

額定工作電壓:



Auxiliary Circuit 690 V



Main Circuit 24 V

評論:



100

RoHS日期:



20171115

適用于:



A9



A12



A16



A26



A30



A40



A50



A63



A75



A95



A110



AL9



AL12



AL16



AL26



AL30



AL40



AE45



AE50



AE63



AE75



TAL9



TAL12



TAL16



TAL26



TAL30



TAL40



AF45



AF50



AF63



AF75



AF95



AF110



TAE45



TAE50



TAE75



UA16



UA26



UA30



UA50



UA63



UA75



UA95



UA110



UA30RA



UA50RA



UA63RA



UA75RA



UA95RA



UA110RA



N22E



N31E



N40E



NL22E



NL31E



NL40E



TNL22E



TNL31E



TNL40E

技術資料:



AUXILIARY SWITCH BLOCK

端子類型:



Screw Terminals

認證及聲明（文件編碼）

CB認證:



CB_SE_62119

CCC認證:



CCC_2013010304604041



CCC_2004010305133985

CSA 認證:



CSA_1033838

數據手冊，技術資料:



1SBC100122C0202_Ch04

符合性聲明 - CE:



1SBD250809U1000

DNV GL Certificate:



DNV_GL_TAE00001UT

EAC認證:



EAC_RU C-FR ME77 B03391

環境信息:



1SBD250132E1001

GOST認證:



GOST_POCCFRME77B07175

說明書和手冊:



1SBC101012M5501

RINA認證:



RINA_ELE128713XG001

RoHS信息:



1SBD250809U1000

UL認證:



UL_071301E48139

分類

ETIM 4:



EC002498 - Accessories for low-voltage switch technology

ETIM 5:



EC002498 - Accessories for low-voltage switch technology

ETIM 6:



EC000041 - Auxiliary contact block

ETIM 7:



EC000041 - Auxiliary contact block

對象分類代碼:



K

UNSPSC:



39120000

WEEE Category:



5. Small Equipment (No External Dimension More Than 50 cm)
