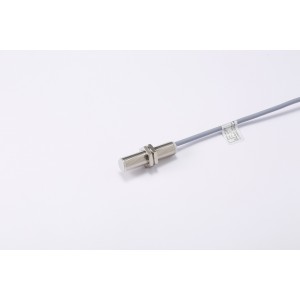

M12圓柱形電感式接近傳感器，齊平8毫米長距離型金屬接近開關

技術參數
安裝方式	齊平
檢測距離	8mm
LED顯示	有
工作電壓	10-30VDC
允許脈動電壓	<10%
無負載電流	<10mA
負載電流	200mA
漏電流	<0.01mA
電壓降	<1.5v
開關頻率	2KHZ
響應時間	0.1ms
開關磁滯	<15%(Sr)
重復精度	<1.0%(Sr)
防護等級	IP67
工作溫度	-25℃至+70℃
溫度漂移	<10%(Sr)
過載電流保護	220mA
感應面材質	PBT
連接方式	2米防油PVC電纜



M12電感式近接傳感器，檢測距離2mm/4mm/6mm/8mm，齊平，標準型體長45mm，短型體長30mm，超短型體長22mm，出線式：

I1CF-M1202N-O3U2,I1CF-M1202N-C3U2,I1CF-M1202P-O3U2,

I1CF-M1202P-C3U2,I1CF-M1204N-O3U2,I1CF-M1204N-C3U2,

I1CF-M1204P-O3U2,I1CF-M1204P-C3U2,I1CF-M1206N-O3U2,

I1CF-M1206N-C3U2,I1CF-M1206P-O3U2,I1CF-M1206P-C3U2,

I1CF-M1208N-O3U2,I1CF-M1208N-C3U2,I1CF-M1208P-O3U2,

I1CF-M1208P-C3U2,I1CF-M1202N-O3S2,I1CF-M1202N-C3S2,

I1CF-M1202P-O3S2,I1CF-M1202P-C3S2,I1CF-M1204N-O3S2,

I1CF-M1204N-C3S2,I1CF-M1204P-O3S2,I1CF-M1204P-C3S2,

I1CF-M1206N-O3S2,I1CF-M1206N-C3S2,I1CF-M1206P-O3S2,

I1CF-M1206P-C3S2,I1CF-M1208N-O3S2,I1CF-M1208N-C3S2,

I1CF-M1208P-O3S2,I1CF-M1208P-C3S2,I1SF-M1202N-O3R2,

I1CF-M1202N-C3R2,I1CF-M1202P-O3R2,I1CF-M1202P-C3R2,

I1CF-M1204N-O3R2,I1CF-M1204N-C3R2,I1CF-M1204P-O3R2,

I1CF-M1204P-C3R2,I1CF-M1206N-O3R2,I1CF-M1206N-C3R2,

I1CF-M1206P-O3R2,I1CF-M1206P-C3R2,
