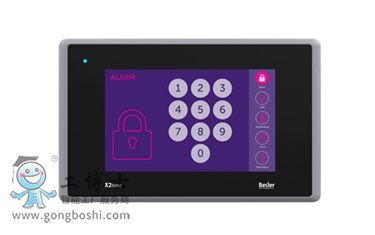

北爾觸摸屏 X2 base 5 5'' HMI with iX software

點擊圖片查看原圖
品牌: 北爾
像素: 800 × 480 pixel (16:9)
單價: 面議
所在地: 北京
有效期至: 長期有效
最后更新: 2023-12-04 09:27
瀏覽次數: 463
詢價
店鋪基本資料信息

產品詳細說明


X2 base 5

5'' HMI with iX software


  • 800 × 480 pixel (16:9)
  • TFT-LCD touch screen
  • 200 MB application memory
  • 1 × Ethernet, 4 × serial, 1 × USB as standard
  • Operating temperature -10° to +50° C
  • CE, FCC, KCC, UL approvals
  • Facts

    General description

    Part number 630005105
    Part status Active
    Warranty 2 year

    Certifications

    General CE, FCC, KCC, UL 61010-2-201

    Mechanical

    Mechanical size 170 x 107 x 49mm
      Panel Mount
      1million finger touch operations
    Touch type Resistive
    Cut-out size 161 x 93mm
    Weight 0.5 kg
    Housing material Plastic (PC+ABS), Gray

    Power

    Input voltage 24 V DC (18 to 32 VDC)CE: The power supply must conformwith the requirements according to IEC 60950 and IEC 61558-2-4.UL and cUL: The power supplymust conformwith the requirements for class II power supplies.
    Power consumption (max) 6W
    Input fuse Internal DC fuse



    CPU AR*** 400 MHz
    RAM 128 MB
    FLASH 256 MB, 200 MB free

    Display

    Size diagonal 5" diagonal
    Resolution 800x480 pixels
    Backlight LED Backlight
    Backlight life time 20000 hours
    Backlight brightness 300 cd/m2
    Backlight dimming Industrial Dimming
    Display type TFT-LCD with LED backlight

    Communication serial

    Number of serial ports 2 Port 9pin DSUB
    Serial port 1 RS 232 (RTS/CTS)
    Serial port 2 RS422/485
    Serial port 3 RS 232
    Serial port 4 RS 485

    Ethernet communication

    Number of Ethernet ports 1
    Ethernet port 1 1x10/100 Base-T (shielded RJ45)

    Expansion interface

    Expansion port No
    SD card No
    USB 1xUSB 2.0 400mA

    Environmental

    Operating temperature -10°C to +50°C
    Storage temperature -20° to +60°C
    Shock 15g, half-sine, 11ms according to IEC60068-2-27
    Vibration 1g, according to IEC 60068-2-6, Test Fc
    Sealing front IP65, NEMA 4X/ 12 and UL Type 4X/ 12
    Sealing back IP20
    Humidity 5% – 85% non-condensed
