Samson薩姆森 3964型電磁閥 可配備3730-2型閥門定位器

點擊圖片查看原圖
品牌: Samson薩姆森
規(guī)格: 10-20
單價: 面議
所在地: 上海
有效期至: 長期有效
最后更新: 2020-12-29 10:52
瀏覽次數(shù): 366
詢價
店鋪基本資料信息

產(chǎn)品詳細說明

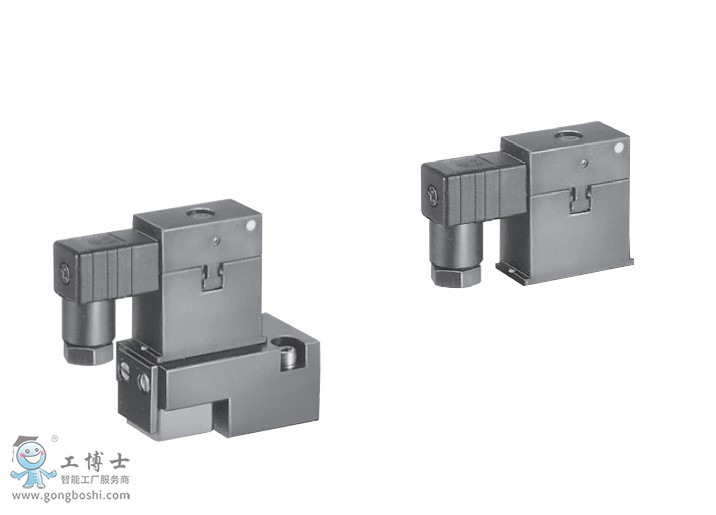

Samson薩姆森3964型電磁閥

 3.2 Devices with interface for

      direct mounting- Type 3964-XXX000X000XX

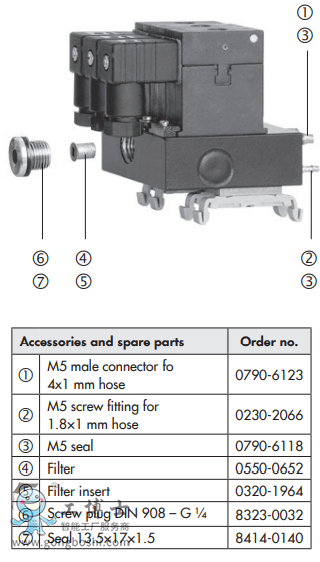

The connecting plate is used for pneumaticconnection (see Fig. 5).

Preferably fit the output ports with M5 screwfitings for 1.8x1 mm hose (@) and the pilotsupply port with an M5 male connector for4x1 mm hose .Use an M5 seal  forall connections.

1 8x1 mm hoses (order no. 8082-0049)and 4x1 mm hoses (order no. 8082-0355)ensure reliable connection. Short switchingtimes can be achieved by keeping the hoselength as short as possible.

To prevent dirt particles entering, a filter with 30 ym mesh size is installed in the pilotsupply port. When the filter is blocked, re-move the screw plug and seal  fromthe filter insert and use a screwdriver(4.5 mm blade) to unscrew the filter Clean or exchange the filter.
