Samson薩姆森3941型電磁閥
1 General safety instructions
-The device is to be mounted, started up or operated only by trained and experienced
personnel familiar with the product.
According to these mounting and operating instructions, trained personnel refers to indi-viduals who are able to judge the work they are assigned to and recognize possible dan-gers due to their specialized training, their knowledge and experience as well as theirknowledge of the applicable standards.
The supply air must not exceed the maximum permissible supplypressure and must be
limited by pressure reducing valve, if necessary.- Proper shipping and storage are assumed.1.1 Legal information
The Type 3941 Solenoid Valve bears a CE marking. The declaration of conformity includesinformation about the applied conformity assessment procedure.
3 Design and principle of oper-
ation

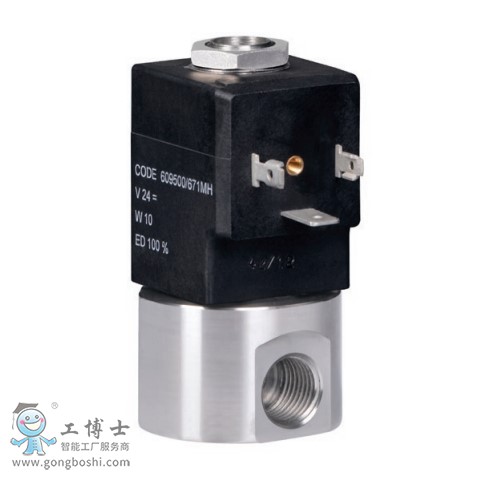

The Type 3941 Solenoid Valve is suitable forindustrial on/off and control applications.The principle of operation is based on a di-rect-acting solenoid plunger system. Whenthe solenoid is energized, the solenoidplunger is lifted and opens the connectionfrom port 1 to port 2.

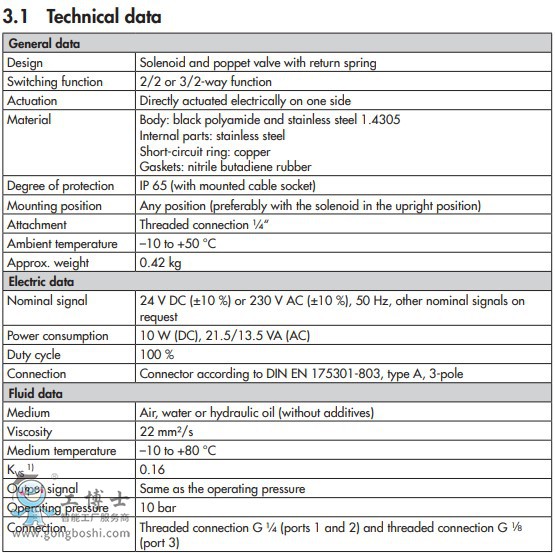

The Type 3941 Solenoid Valve implements2/2-way or 3/2-way functions with Kys0.16 (see Fig. 1) depending on the version.
