福斯Flowserve PVXM離心泵

點擊圖片查看原圖
品牌: FLOWSERVE
流量: 至 1300 m3/h (5700 gpm)
揚程: 至 90 m (300 ft)
壓力: 至12 bar (175 psi)
單價: 9999.00元/
所在地: 上海
有效期至: 長期有效
最后更新: 2021-01-16 20:12
瀏覽次數: 1478
詢價
店鋪基本資料信息
  • 福斯Flowserve泵
  • 聯系人魏海燕(先生)
  • 會員 [當前離線] [加為商友] [發送信件]
  • 郵件leohan@gongboshi.com
  • 電話021-53521755
  • 手機15881035758
  • 地址上海市寶山區富聯一路98弄6號

產品詳細說明


The PVXM type pump is a heavy duty, single stage, in-line centrifugal pump, designed for the Petrochemical Industry, chemical plants, general service and circulating applications.


Features and Benefits

Pump casing  The pump has its main casing gasket axial to the shaft allowing maintenance to the rotating element by removing the back pull out unit. Suction and discharge branches are at the casing and therefore its piping remain undisturbed at maintenance.
Impeller   The impeller is fully shrouded and is fitted with impeller wear rings.
Diffuser  The diffuser is tuned to the impeller and the multi channel diffuser is concentric aligned around the impeller.
Pump Shaft  The pump is of the dry shaft design and has a keyed drive end.
Stuffing box  The stuffing box has a spigot (rabbet) fit between the pump casing and seal plate for optimum concentricity. The design enables a number of sealing options to be fitted.
Shaft seal The mechanical seal(s) attached to the pump shaft seals the pumped liquid from the environment. Gland packing may be fitted as an option, for non-hazardous service only.

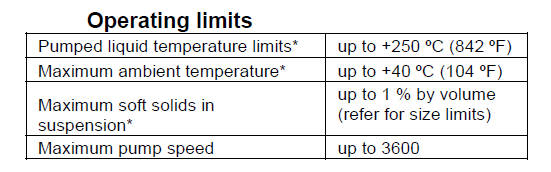

OPERATING LIMITS
命名

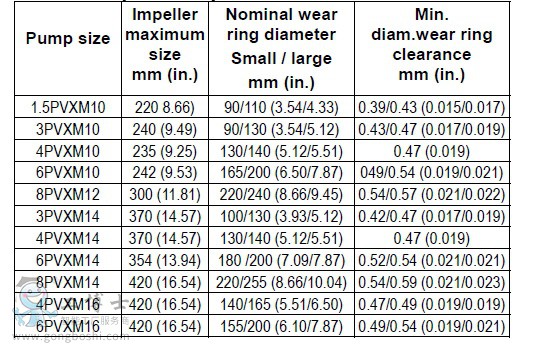

葉輪






 更多福斯Flowserve產品和應用,煩請登錄www.flowserve-pump.gongboshi.com
