The TX3 is a triple offset butterfly control valve with an elliptical sealing surface that is completely in contact at the final position only, and upon opening, all contact points are released immediately from the seat ring.
Features and Benefits
•Provides reliable long-lasting zero leakage (API 598) shutoff
•Combined with the high-thrust actuator, the TX3 achieves high performance throttling control in a wide range of industry applications
•The smart positioner makes sure the valve is always in exactly the right position to optimize process parameters and provide operators with the information they need
Size Range:
NPS 3, 4, 6, 8, 10, 12, 14, 16, 18, 20, 24, 30, 36
Pressure Class Range:
ASME class 150, 300, 600, 900, 1500
Seating Material:
Laminated graphite/metal seat, solid metal seat.

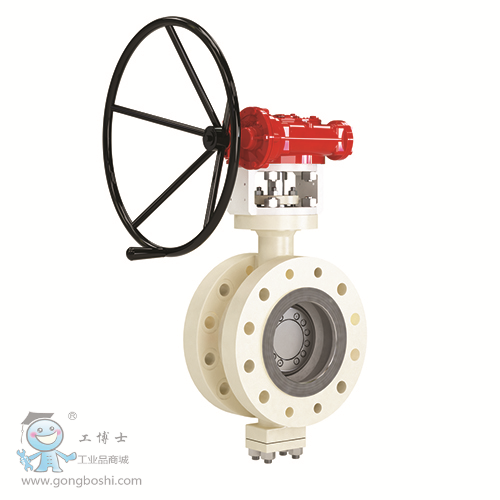

![Flowserve-Durco-TripleOffsetButterflyValves-TX3[1]](http://www.ksacn.com/file/upload/201704/16/23/23-00-32-98-24668.png)
