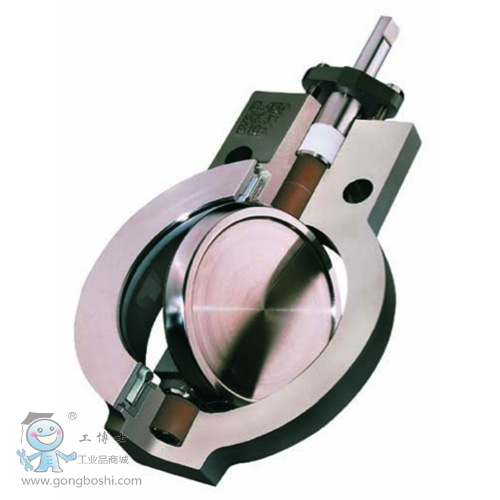

The Big Max BX2001 is a high-performance, all-purpose valve designed for precise throttling control or on-off service with lighter weight piping systems and less expensive, energy-efficient actuators.

Features and Benefits

•Broad application versatility via numerous design options: wafer and lug bodies; standard PFA, optional UHMWPE, fire-sealed, Apex® and TriFlex™ seated versions; and multiple packing options
•Reduced fugitive emissions through triple-leak protection of primary stem seal plus two optional secondary seals
•Increased capacity and improved flow control with low-profile, double-offset disc
•Improved personnel and plant safety per adherence to API 609 criteria for safe, reliable anti-blowout protection

Size Range:
•DN 50 to 900
•NPS 2" - 36"

Pressure Class Range:
•PN 10 to 40
•Class 150 & 300

Seating Material: Soft and Metal
