研華工控機510MB-25C/763VG/E7500/2G/500G/DVD/KB+MS/
點擊圖片查看原圖
品牌： 研華工控機
單價： 面議
所在地： 北京
有效期至： 長期有效
最后更新： 2017-09-26 10:01
瀏覽次數： 499
詢價
店鋪基本資料信息

 產品詳細說明
產品配置：
機箱：IPC-510-25C
主板：AIMB-763VG
CPU：E7500
內存：2G
硬盤：500G
DVD光驅，鼠標，鍵盤

機箱說明：

IPC-510

IPC-510_01_B

IPC-510MB


Form Factor
Front I/O Interface
  • USB2.0
  • PS/2
  • 2
  • 2
  • 2
  • 2
  • 2
  • 2
  • 1
  • 1
  • 1
  • 1
  • 1
  • 1

Cooling
  • System Fan
  • 1 (12 cm / 77 CFM)
  • 1 (12 cm / 77 CFM)
  • 1 (12 cm / 77 CFM)
  • 1 (12 cm / 77 CFM)
  • 1 (12 cm / 77 CFM)
  • 1 (12 cm / 77 CFM)

Environment
  • Operational Temperature
  • Non-Operational Temperature
  • Operating Shock
  • Operating Humidity
  • Non-Operating Humidity
  • Operating Vibration (5 ~ 500 Hz)
  • Non-Operating Vibration (5 ~ 500 Hz)
  • 0 ~ 40° C (32 ~ 104° F)
  • 0 ~ 40° C (32 ~ 104° F)
  • 0 ~ 40° C (32 ~ 104° F)
  • 0 ~ 40° C (32 ~ 104° F)
  • 0 ~ 40° C (32 ~ 104° F)
  • 0 ~ 40° C (32 ~ 104° F)
  • -20 ~ 60° C (-4 ~ 140° F)
  • -20 ~ 60° C (-4 ~ 140° F)
  • -20 ~ 60° C (-4 ~ 140° F)
  • -20 ~ 60° C (-4 ~ 140° F)
  • -20 ~ 60° C (-4 ~ 140° F)
  • -20 ~ 60° C (-4 ~ 140° F)
  • 10 G (with 11 ms duration, half sine wave)
  • 10 G (with 11 ms duration, half sine wave)
  • 10 G (with 11 ms duration, half sine wave)
  • 10 G (with 11 ms duration, half sine wave)
  • 10 G (with 11 ms duration, half sine wave)
  • 10 G (with 11 ms duration, half sine wave)
  • 10 ~ 85% @ 40° C, non-condensing
  • 10 ~ 85% @ 40° C, non-condensing
  • 10 ~ 85% @ 40° C, non-condensing
  • 10 ~ 85% @ 40° C, non-condensing
  • 10 ~ 85% @ 40° C, non-condensing
  • 10 ~ 85% @ 40° C, non-condensing
  • 10 ~ 95% @ 40° C, non-condensing
  • 10 ~ 95% @ 40° C, non-condensing
  • 10 ~ 95% @ 40° C, non-condensing
  • 10 ~ 95% @ 40° C, non-condensing
  • 10 ~ 95% @ 40° C, non-condensing
  • 10 ~ 95% @ 40° C, non-condensing
  • 1 Grms
  • 1 Grms
  • 1 Grms
  • 1 Grms
  • 1 Grms
  • 1 Grms
  • 2 G
  • 2 G
  • 2 G
  • 2 G
  • 2 G
  • 2 G

Physical Characteristics
  • Weight
  • Dimensions (W x H x D)
  • 10.7 kg (23.5 lb)
  • 10.7 kg (23.5 lb)
  • 10.7 kg (23.5 lb)
  • 10.7 kg (23.5 lb)
  • -
  • -
  • 481 x 175 x 446 mm ( 19" x 7" x 17.6" )
  • 481 x 175 x 446 mm ( 19" x 7" x 17.6" )
  • 481 x 175 x 446 mm ( 19" x 7" x 17.6" )
  • 481 x 175 x 446 mm ( 19" x 7" x 17.6" )
  • 481 x 175 x 446 mm ( 19" x 7" x 17.6" )
  • 481 x 175 x 446 mm ( 19" x 7" x 17.6" )

Disk Drive Bay
  • 5.25 External Bay
  • 3.5 External Bay
  • 3
  • 3
  • 3
  • 3
  • 3
  • 3
  • 1
  • 1
  • 1
  • 1
  • 1
  • 1

Miscellaneous
  • LED Indicators
  • Rear Panel
  • Power, HDD activity
  • Power, HDD activity
  • Power, HDD activity
  • Power, HDD activity
  • Power, HDD activity
  • Power, HDD activity
  • One 9-pin D-Sub opening
  • One 9-pin D-Sub opening
  • One 9-pin D-Sub opening
  • Five 9-pin D-Sub & one 68-pin SCSI openings
  • Five 9-pin D-Sub & one 68-pin SCSI openings
  • Five 9-pin D-Sub & one 68-pin SCSI openings

Power Supply
  • P/S
  • -
  • -
  • 300W
  • -
  • -
  • 300W






主板說明：

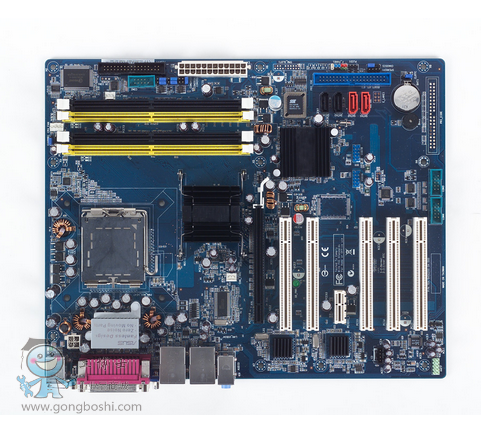

AIMB-763VG
Category Attribute Value
Form Factor Form Factor ATX
Processor System BIOS Award 8Mbit FWH
Chipset Intel 945G + ICH7R
CPU Intel Core 2 Duo
Frequency Up to 3.8 GHz
FSB 533/800/1066 MHz
Integrated Graphics Yes
L2 Cache 4MB/1MB/2MB/512KB
L3 Cache -
Memory Capacity Up to 4 GB
ECC Support -
Socket 4 x 240-pin UDIMM
Technology DDR2 533/667 MHz
Display Controller Intel GMA 950 Integrated
Display Interface VGA: Up to 2048 x 1536
Graphic Memory Share with system memory up to 224 MB
Multiple Display -
Expansion Interface LPC 1
PCI 5
PCI Express x 1 1
PCI Express x 16 1
PCI Express x 4 -
Ethernet Connector 2 x RJ45
Controller LAN1: Intel 82573L LAN2: Intel 82573L
Speed 10/100/1000 Base-T
WatchDog Timer Interval Programmable 1~255 sec
Output System Reset
I/O COM Port 3 (2 x RS232, 1 x RS232/422/485)
GPIO -
LPT -
PS/2 Keyboard/Mouse -
SATA 4 x SATA II
SPDIF -
System Fan 2
USB2.0 4
USB3.0 -
Rear I/O Interface Audio 3 (Mic-In, Line-Out, Line-In)
COM 1 (1 x RS232)
Display 1
DVI -
Ethernet 2
LPT 1
PS/2 2(1 x keyboard and 1 x mouse)
USB2.0 4
USB3.0 -
VGA 1
Physical Characteristics Dimensions (LxW) 304.8 x 244 mm (12" x 9.6")
Certification EMC CE, FCC
Management Solution Software -


常備研華工控機產品：
AIMB-763VG主板
510L/763VG/E7500/2G/500G/DVD/K+M/NSE
610MB/763G2/E5300/2G/500G/K+M/NSE 工控機

AIMB-769VG主板
610H/769VG/E5300/2G/500G/DVD/K+M/ 工控機
610H/769VG/E5300/2G/500G/DVD/K+M 工控機/一年上門
610H/769VG/E8400/2G/500G/DVD/K+M/ 工控機
610H/769VG/E8400/2G/500G/DVD/K+M 工控機/一年上門
610L/769VG/E5300/2G/500G/DVD/K+M/
610L/769VG/E5300/2G/500G/DVD/K+M 工控機/一年上門
610L/769VG/E8400/2G/500G/DVD/K+M 工控機
610L/769VG/E8400/2G/500G/DVD/K+M 工控機/一年上門

PCA-6010VG主板,250W電源
610H/6010VG/E7500/2G/500G/DVD/K+M 工控機
610H/6010VG/E7500/2G/500G/DVD/K+M 工控機/一年上門
610H/6010VG/E5300/2G/500G/DVD/K+M 工控機
610H/6010VG/E5300/2G/500G/DVD/K+M 工控機/一年上門
610L/6010VG/E7500/2G/500G/DVD/K+M/NSE工控機
610L/6010VG/E7500/2G/500G/DVD/K+M 工控機/一年上門
610L/6010VG/E5300/2G/500G/DVD/K+M/NSE
610L/6010VG/E5300/2G/500G/DVD/K+M 工控機/一年上門
610L/6010VG/P4/3.0/2G/500G/DVD/K+M/NSE
510L/6010VG/E7500/2G/500G/DVD/K+M/NSE

PCA-6011VG主板
610H/6011VG/E5300/2G/500G/DVD/K+M 工控機
610H/6011VG/E5300/2G/500G/DVD/K+M 工控機/一年上門
610H/6011VG/E8400/2G/500G/DVD/K+M 工控機
610H/6011VG/E8400/2G/500G/DVD/K+M 工控機/一年上門
610L/6011VG/E5300/2G/500G/DVD/K+M 工控機
610L/6011VG/E5300/2G/500G/DVD/K+M 工控機/一年上門
610L/6011VG/E8400/2G/500G/DVD/K+M 工控機
610L/6011VG/E8400/2G/500G/DVD/K+M 工控機/一年上門

AIMB-701VG主板
610L/701VG/I7-2600/4G/1T/DVD/K+M 工控機/一年上門/300W
610L/701VG/I7-2600/8G/2T/DVD/K+M/NSE工控機
610H/701VG/I5-2400/4G/1T/DVD/K+M 工控機一年上門/300W
610H/701VG/I5-2400/4G/1T/DVD/K+M/NSE
610L/701VG/I5-2400/4G/1T/DVD/K+M 工控機/一年上門/300W
610L/701VG/I5-2400/4G/1T/DVD/K+M 工控機/250W 不帶上門
610L/701VG/I3-3220/4G/500G/DVD/K+M/ 工控機 250W不帶上門
610H/701VG/I3-3220/4G/1T/DVD/K+M 工控機 250W 帶上門
610H/701VG/I3-3220/4G/1T/DVD/K+M/NSE 250W 不帶上門
510MB/701VG/I3-3220/4G/1T/DVD/K+M/NSE
510MB/701VG/G1620/2G/500G/NSE 工控機

AIMB-701G2主板
610L/701G2/I5-2400/4G/1T/DVD/K+M/NSE工控機

AIMB-562L主板
610L/562L/E5300/2G/500G/DVD/K+M/ 工控機
510L/562L/E5300/2G/500G/DVD/K+M/ 工控機

AIMB-501G2主板
610L/501G2/I3-3220/4G/1T/DVD/K+M 帶一年上門 250W
610L/501G2/I5-2400/4G/1T/DVD/K+M/NSE
510L/501G2/I5-2400/4G/1T/DVD/K+M/NSE

AIMB-705VG主板
610L/705VG/I3-6100/4G/500G/DVD/K+M工控機 300W 帶上門
