TESCOM 26-1700系列 背壓調(diào)壓閥-艾默生EMERSON

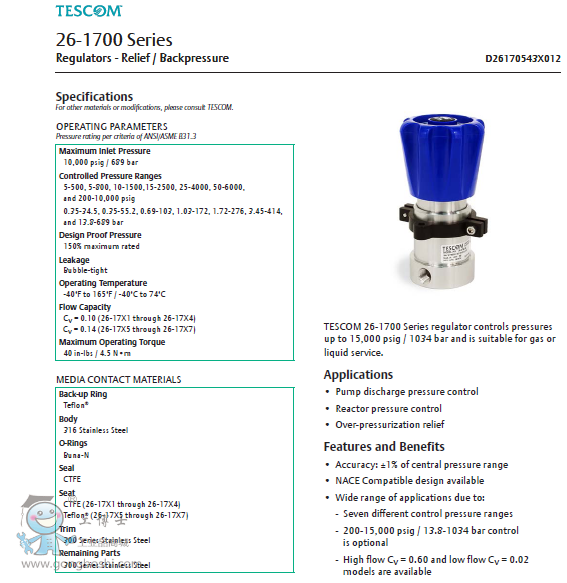

TESCOM 26-1700 Series regulator controls pressures up to 15,000 psig / 1034 bar and is suitable for gas or liquid service.
Applications
• Pump discharge pressure control
• Reactor pressure control
• Over-pressurization relief
Features and Benefits
• Accuracy: ±1% of central pressure range
• NACE Compatible design available
• Wide range of applications due to:- Seven different control pressure ranges- 200-15,000 psig / 13.8-1034 bar control
is optional- High flow Cv = 0.60 and low flow Cv = 0.02 models are available
• Bubble-tight shut-off at all reseat pressures
• Safe and reliable piston-style sensor
• Panel mounting is standard
• Compatible with TESCOM Air Actuators and
ER5000 Electropneumatic Controllers
