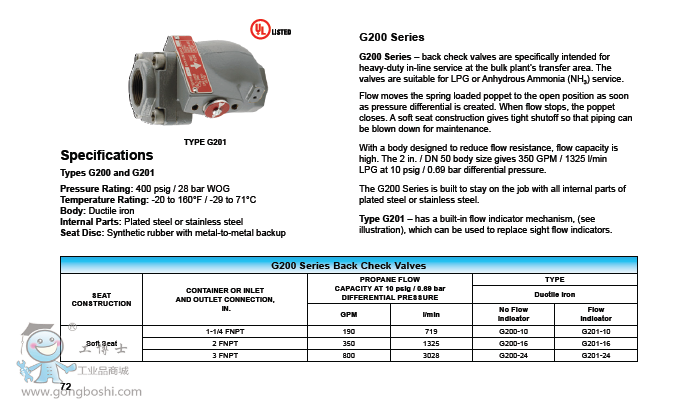

Fisher™ Types G200,G201止回閥-費希爾Fisher
G200/G201 Series back check valves are specifically intended for heavy-duty in-line service at the bulk plants transfer area. The valves are suitable for LP-Gas or Anhydrous Ammonia (NH3) service. Flow moves the spring loaded poppet to the open position as soon as pressure differential is created. A soft seat construction gives tight shutoff so that piping can be blown down for maintenance. Type G201 has a built-in flow indicator mechanism, which can be used to replac sight flow indicators.
Features
- Rugged Construction
- High-Flow Capacity
- Soft Seat
- Flow Indicator
- Body Sizes and End Connection Styles (inlet x outlet)
- Types G200-10/G201-10: 1-1/4-inch FNPT
G200-16/G201-16: 2-inch FNPT
G200-24/G201-24: 3-inch FNPT
- Maximum Inlet Pressure
- 400 psi / 27,6 bar
- Temperature Capabilities
- -40° to 160°F / -40° to 71°C
