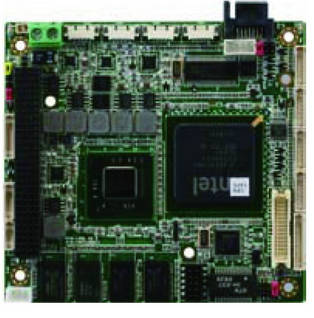

PC/104模塊 帶 Intel Atom N450 處理器
System
Form Factor
PC/104
Processor
Intel® Atom™ N450 1.66 GHz Processor
System Memory
Onboard DDR2 667, Max. 1 GB
Chipset
Intel® ICH8M
I/O Chipset
SCH3114
Ethernet
Intel® 82567V for 10/1000/1000Base-TX
BIOS
AMI BIOS – 4 MB Flash
Wake on LAN
Yes
Watchdog Timer
Generates a time-out system resert
H/WStatu Monitoring
Supports Power Supply Voltage, Fan Speed and Temperature Monitoring.
Expansion Interface
PCI-104, Mini Card
Battery
Lithium battery
Power Requirement
12V
Power Consumption
(Typical)
Intel® Atom™ N450 1.66GHz, DDR2 667 1 GB1.3A@+12V
Board Size
3.55" x 3.77" (90mm x 96mm)
Gross Weight
0.35 lb (0.16 Kg)
Operating Temperature
32°F ~ 140°F (0°C ~ 60°C)
Storage Temperature
-40°F ~ 176°F (-40°C ~ 80°C)
Operating Humidity
0% ~ 90% relative humidity, non-condensing
MTBF (Hours)
83,000
Display
Supports CRT/LCD simultaneous/ dual view displays
Chipset
Intel® Atom™ N450 processor integrated
Memory
Shared system memory up to 384 MB/ DVMT 4.0
Resolutions
Up to 1400 x 1050 for CRT
Up to 1280 x 768 for LCD
LCD Interface
18-bit single channel LVDS
I/O
Storage
SATA 3.0Gb/s x 1, Type 1 CompactFlash™ x 1
Serial Port
RS-232 x 3, RS-232/422/485 x 1
Universal Serial Bus
USB2.0 x 4
PS/2 Port
Keyboard + Mouse x 1
