符合標準：GB14048.11-2008
污染等級：工業Ⅲ級
工作溫度：-5°C to +40°C
電器級別：PC級
使用類別：AC-33iB
獲得CCC證書并通過EMC電磁兼容性測試

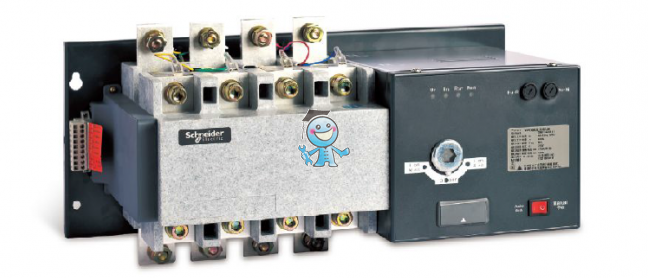

PC級轉換開關

接通、承載，但不用于分?jǐn)喽搪冯娏?/span>
　　>電流等級32-800A
　　>執行原件為WG負荷隔離開關
　　>對外零飛弧
　　>具備較高短路接通及短時耐受能力

施耐德萬高雙電源WATSGB-32/4RF 4P 32A

施耐德萬高雙電源WATSGB-63/4RF 4P 63A

施耐德萬高雙電源WATSGB-100/4RF 4P 100A

施耐德萬高雙電源WATSGB-125/4RF 4P 125A

施耐德萬高雙電源WATSGB-160/4RF  4P 160A

施耐德萬高雙電源WATSGB-200/4RF 4P 200A

施耐德萬高雙電源WATSGB-250/4RF 4P 250A

施耐德萬高雙電源WATSGB-320/4RF 4P 320A

施耐德萬高雙電源WATSGB-400/4RF 4P 400A

施耐德萬高雙電源WATSGB-500/4RF 4P 500A

施耐德萬高雙電源WATSGB-630/4RF 4P 630A

施耐德萬高雙電源WATSGB-800/4RF 4P 800A

施耐德萬高雙電源WATSGA-32/4RF 4P 32A

施耐德萬高雙電源WATSGA-63/4RF 4P 63A

施耐德萬高雙電源WATSGA-100/4RF 4P 100A

施奈德自動轉換開關WATSGA-125/4RF 4P 125A

施奈德自動轉換開關WATSGA-160/4RF 4P 160A

施奈德自動轉換開關WATSGA-200/4RF 4P 200A

施奈德自動轉換開關WATSGA-250/4RF 4P 250A

施奈德自動轉換開關WATSGA-320/4RF 4P 320A

施奈德自動轉換開關WATSGA-400/4RF 4P 400A

施奈德自動轉換開關WATSGA-500/4RF 4P 500A

施奈德自動轉換開關WATSGA-630/4RF 4P 630A

施奈德自動轉換開關WATSGA-800/4RF 4P 800A

施奈德自動轉換開關WATSGA-32/3RF 3P 32A

施奈德自動轉換開關WATSGA-63/3RF 3P 63A

施奈德自動轉換開關WATSGA-100/3RF 3P 100A

施奈德自動轉換開關WATSGA-125/3RF 3P 125A

施奈德自動轉換開關WATSGA-160/3RF 3P 160A

施奈德自動轉換開關WATSGA-200/3RF 3P 200A

施奈德自動轉換開關WATSGA-250/3RF 3P 250A

施奈德自動轉換開關WATSGA-320/3RF 3P 320A

施奈德自動轉換開關WATSGA-400/3RF 3P 400A

施奈德自動轉換開關WATSGA-500/3RF 3P 500A

施奈德自動轉換開關WATSGA-630/3RF 3P 630A

施奈德自動轉換開關WATSGA-800/3RF 3P 800A

施奈德自動轉換開關WATSGC-32/3RF 3P 32A

施奈德自動轉換開關WATSGC-63/3RF 3P 63A

施奈德自動轉換開關WATSGC-100/3RF 3P 100A

施奈德自動轉換開關WATSGC-125/3RF3P 125A

施奈德自動轉換開關WATSGC-160/3RF3P 160A

施奈德自動轉換開關WATSGC-200/3RF3P 200A

施奈德自動轉換開關WATSGC-250/3RF3P 250A

施奈德自動轉換開關WATSGC-320/3RF3P 320A

施奈德自動轉換開關WATSGC-400/3RF3P  400A

施奈德自動轉換開關WATSGC-500/3RF3P  500A

施奈德自動轉換開關WATSGC-630/3RF3P 630A

施奈德手動轉換開關WATSGC-800/3RF3P 800A

施奈德手動轉換開關WATSGC-32/4RF4P 32A

施奈德手動轉換開關WATSGC-63/4RF4P 63A

施奈德手動轉換開關WATSGC-100/4RF4P 100A

施奈德手動轉換開關WATSGC-125/4RF4P 125A

施奈德手動轉換開關WATSGC-160/4RF4P 160A

施奈德手動轉換開關WATSGC-200/4RF4P 200A

施奈德手動轉換開關WATSGC-250/4RF4P 250A

施奈德手動轉換開關WATSGC-320/4RF4P 320A

施奈德手動轉換開關WATSGC-400/4RF4P 400A

施奈德手動轉換開關WATSGC-500/4RF4P 500A

施奈德手動轉換開關WATSGC-630/4RF4P 630A

施奈德手動轉換開關WATSGC-800/4RF4P 800A

施奈德自動轉換開關WATSGD-32/3RF3P 32A

施奈德自動轉換開關WATSGD-63/3RF 3P 63A

施奈德自動轉換開關WATSGD-100/3RF 3P 100A

施奈德自動轉換開關WATSGD-125/3RF3P 125A

施奈德自動轉換開關WATSGD-160/3RF3P 160A

施奈德自動轉換開關WATSGD-200/3RF3P 200A

施奈德自動轉換開關WATSGD-250/3RF3P 250A

施奈德自動轉換開關WATSGD-320/3RF3P 320A

施奈德自動轉換開關WATSGD-400/3RF3P 400A

施奈德手動轉換開關WATSGD-500/3RF3P 500A

施奈德手動轉換開關WATSGD-630/3RF3P 630A

施奈德手動轉換開關WATSGC-800/3RF3P 800A

施奈德手動轉換開關WATSGD-32/4RF4P 32A

施奈德手動轉換開關WATSGD-63/4RF4P 63A

施奈德手動轉換開關WATSGD-100/4RF4P 100A

施奈德手動轉換開關WATSGD-125/4RF4P 125A

施奈德手動轉換開關WATSGD-160/4RF4P 160A

施奈德手動轉換開關WATSGD-200/4RF4P 200A

施奈德手動轉換開關WATSGD-250/4RF4P 250A

施奈德手動轉換開關WATSGD-320/4RF4P 320A

施奈德手動轉換開關WATSGD-400/4RF4P 400A

施奈德手動轉換開關WATSGD-500/4RF4P 500A

施奈德手動轉換開關WATSGD-630/4RF4P 630A

施奈德手動轉換開關WATSGD-800/4RF4P 800A

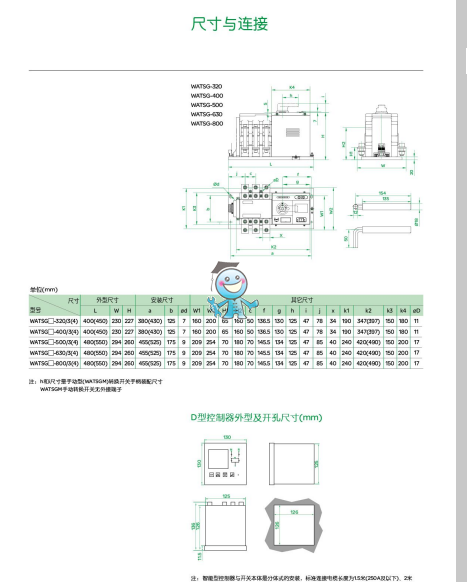

當常用電源正常，功能鍵置于自動檔時，備用斷路器分、常用斷路器合，以保護常用電源接通負載。當常用電源A一相或三相全部電壓中斷時，ATS將負載從常用電源轉換到備用電源(當備用電源有正常電壓時)，并在常用電源恢復至正常時，又將備用電源轉換至常用電源。具體安裝方式如下
